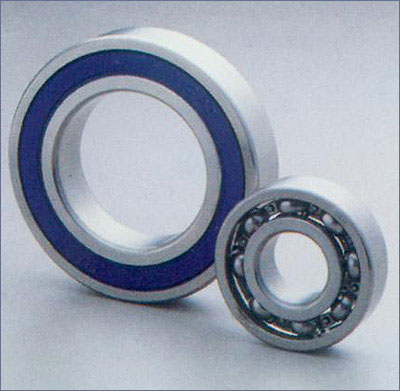

6000、6200系列 |
| 6000、6200系列 |
| |
|
|
| 轴承型号 |
孔径 |
外径 |
宽度 |
倒角 |
额定载荷（KN） |
钢球参数 |
极限转速（转/分） |
| Bearing No. |
Bore |
O.D |
Width |
Chamfer |
Load Rating |
Ball Complement |
Maxrunout speed |
| |
d |
D |
B |
r min |
|
|
|
| |
mm in. |
mm in. |
mm in. |
mm |
Dynamic |
Static |
NO. |
Size |
Grease |
Oil |
| |
|
|
|
|
Cr |
Cor |
mm |
r/min |
r/min |
| 605 |
5 .1969 |
14 .5512 |
5 .1969 |
0.2 |
1.33 |
0.55 |
7 |
2.381 |
32000 |
40000 |
| 606 |
6 .2362 |
17 .6693 |
6 .2362 |
0.3 |
1.95 |
0.72 |
8 |
2.831 |
30000 |
38000 |
| 607 |
7 .2756 |
19 .7480 |
6 .2362 |
0.3 |
2.88 |
1.08 |
7 |
3.5 |
28000 |
36000 |
| 608 |
8 .3149 |
22 .8661 |
7 .2756 |
0.3 |
3.32 |
1.38 |
7 |
3.969 |
26000 |
34000 |
| 609 |
9 .3453 |
24 .9449 |
7 .2756 |
0.3 |
3.35 |
1.4 |
7 |
3.969 |
22000 |
30000 |
| 6000 |
10 .3937 |
26 1.0236 |
8 .3150 |
0.3 |
4.58 |
1.98 |
7 |
4.763 |
20000 |
28000 |
| 6001 |
12 .4724 |
28 1.1024 |
8 .3150 |
0.3 |
5.1 |
2.38 |
8 |
4.763 |
19000 |
26000 |
| 6002 |
15 .5906 |
32 1.2598 |
9 .3543 |
0.3 |
5.58 |
2.85 |
9 |
4.763 |
18000 |
24000 |
| 6003 |
17 .6693 |
35 1.3780 |
10 .3937 |
0.3 |
6 |
3.25 |
10 |
4.763 |
17000 |
22000 |
| 6004 |
20 .7874 |
42 1.6535 |
12 .4724 |
0.6 |
9.38 |
5.02 |
9 |
6.35 |
15000 |
19000 |
| 6005 |
25 .9843 |
47 1.8504 |
12 .4724 |
0.6 |
10 |
5.85 |
10 |
6.35 |
13000 |
17000 |
| 6006 |
30 1.1811 |
55 2.1654 |
13 .5118 |
1 |
10.18 |
6.91 |
11 |
7.144 |
12000 |
15000 |
| 6007 |
35 1.3780 |
62 2.4409 |
14 .5512 |
1 |
12.47 |
8.66 |
11 |
7.938 |
10000 |
13000 |
| 6008 |
40 1.5748 |
68 2.6772 |
15 .5906 |
1 |
13.1 |
9.45 |
12 |
7.938 |
8000 |
11000 |
| 6009 |
45 1.7717 |
75 2.9528 |
16 .6299 |
1 |
16.22 |
11.96 |
12 |
8.731 |
7200 |
9000 |
| 6010 |
50 1.9685 |
80 3.1496 |
16 .6299 |
1 |
16.94 |
12.95 |
13 |
8.731 |
6400 |
7800 |
| 625 |
5 .1968 |
16 .6299 |
5 .1968 |
0.3 |
1.88 |
0.68 |
6 |
3.175 |
32000 |
40000 |
| 626 |
6 .2362 |
19 .7480 |
6 .2362 |
0.3 |
2.8 |
1.05 |
7 |
3.5 |
28000 |
36000 |
| 627 |
7 .2756 |
22 .8661 |
7 .2756 |
0.3 |
3.28 |
1.35 |
7 |
3.969 |
26000 |
34000 |
| 628 |
8 .3149 |
24 .9448 |
8 .3149 |
0.3 |
3.35 |
1.4 |
7 |
3.969 |
24000 |
32000 |
| 629 |
9 .3453 |
26 1.0236 |
8 .3149 |
0.3 |
4.45 |
1.95 |
7 |
4.763 |
22000 |
30000 |
| 6200 |
10 .3937 |
30 1.1811 |
9 .3453 |
0.6 |
5.1 |
2.38 |
8 |
4.763 |
19000 |
26000 |
| 6201 |
12 .4724 |
32 1.2598 |
10 .3937 |
0.6 |
6.82 |
3.05 |
7 |
5.953 |
18000 |
24000 |
| 6202 |
15 .5906 |
35 1.3780 |
11 .4331 |
0.6 |
7.65 |
3.72 |
8 |
5.953 |
17000 |
22000 |
| 6203 |
17 .6693 |
40 1.5748 |
12 .4724 |
0.6 |
9.58 |
4.78 |
8 |
6.747 |
16000 |
20000 |
| 6204 |
20 .7874 |
47 1.8504 |
14 .5512 |
1 |
12.8 |
6.65 |
8 |
7.938 |
14000 |
18000 |
| 6205 |
25 .9843 |
52 2.0470 |
15 .5906 |
1 |
14 |
7.88 |
9 |
7.938 |
12000 |
16000 |
| 6206 |
30 1.1811 |
62 2.4409 |
16 .6299 |
1 |
19.5 |
11.2 |
9 |
9.525 |
10000 |
13000 |
| 6207 |
35 1.3780 |
72 2.8346 |
17 .6693 |
1.1 |
19.75 |
13.67 |
9 |
11.112 |
8800 |
10000 |
| 6208 |
40 1.5748 |
80 3.1496 |
18 .7087 |
1.1 |
22.71 |
15.94 |
9 |
12 |
7700 |
9200 |
| 6209 |
45 1.7717 |
85 3.3465 |
19 .7480 |
1.1 |
24.36 |
17.71 |
10 |
12 |
6800 |
8200 |
| 6210 |
50 1.9685 |
90 3.5433 |
20 .7874 |
1.1 |
26.98 |
19.84 |
10 |
12.7 |
6100 |
7300 |
|
|
| |
 |
