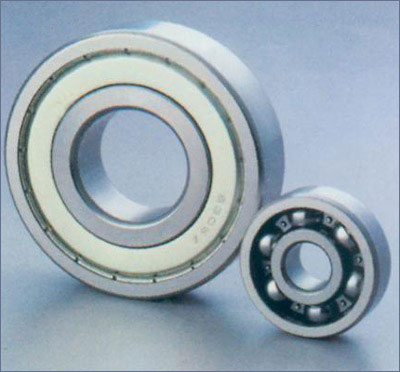

6300、6800、6900系列
6300、6800、6900系列




轴承型号 孔径 外径 宽度 倒角 额定载荷(KN) 钢球参数 极限转速(转/分)
Bearing No. Bore O.D Width Chamfer Load Rating Ball Complement Maxrunout speed
  d D B r min
  mm in. mm in. mm in. mm Dynamic Static NO. Size Grease Oil
          Cr Cor mm r/min r/min
6300 10 .3937 35 1.3780 11 .4331 0.6 7.65 3.48 7 6.35 15000 21000
6301 12 .4724 37 1.4567 12 .4724 1 9.72 5.08 6 7.938 14000 20000
6302 15 .5906 42 1.6535 13 .5118 1 11.5 5.42 7 7.938 13000 18000
6303 17 .6693 47 1.8504 14 .5512 1 13.5 6.58 7 8.731 12000 17000
6304 20 .7874 52 2.0472 15 .5906 1.1 15.9 7.8 7 9.525 11000 15000
6305 25 .9843 62 2.4409 17 .6693 1.1 17.22 11.39 7 11.5 10000 13000
6306 30 1.1811 72 2.8346 19 .7480 1.1 20.77 14.17 8 12 8000 10000
6307 35 1.3780 80 3.1496 21 .8268 1.5 25.66 17.92 8 13.494 6800 8000
6308 40 1.5748 90 3.5433 23 .9055 1.5 31.35 22.88 8 15.081 5800 7200
6800 10 .3937 19 .7480 5 .1969 0.3 1.4 0.75 9 2.381 26000 34000
6801 12 .4724 21 .8268 5 .1969 0.3 1.4 0.9 12 2.381 22000 30000
6802 15 .5906 24 .9449 5 .1969 0.3 1.92 1.18 14 2.381 20000 28000
6803 17 .6693 26 1.0236 5 .1969 0.3 2.18 1.28 15 2.381 19000 26000
6804 20 .7874 32 1.2598 7 .2756 0.3 3.45 2.25 13 3.5 17000 22000
6805 25 .9843 37 1.4567 7 .2756 0.3 3.7 2.65 15 3.5 15000 19000
6806 30 1.1811 42 1.6535 7 .2756 0.3 4.7 3.65 19 3.175 13000 17000
6807 35 1.3780 47 1.8504 7 .2756 0.3 4.9 4.05     11000 15000
6808 40 1.5748 52 2.0472 7 .2756 0.3 5.1 4.4     9000 13000
6809 45 1.7717 58 2.2835 7 .2756 0.3 6.4 5.65     7000 11000
6810 50 1.9685 65 2.5591 7 .2756 0.3 6.6 6.1     5000 9000
6900 10 .3937 22 .8661 6 .2362 0.5 3.3 1.4   2.381 25000 32000
6901 12 .4724 24 .9449 6 .2362 0.5 3.38 1.48 12 3.5 20000 28000
6902 15 .5906 28 1.1024 7 .2756 0.5 4 2.02 9 3.969 19000 26000
6903 17 .6693 30 1.1811 7 .2756 0.5 4.3 2.32 10 3.969 18000 24000
6904 20 .7874 37 1.4567 9 .3543 0.5 6.55 3.6 11 4.763 17000 22000
6905 25 .9843 42 1.6535 9 .3543 0.5 7.36 4.55 11 4.763 14000 18000
6906 30 1.1811 47 1.8504 9 .3543 0.3 7.25 5 13 4.763 12000 16000
6907 35 1.3780 55 2.1654 10 .3937 0.6 11.2 7.45 14   10000 14000
6908 40 1.5748 62 2.4409 12 .4724 0.6 14.6 10.2     8000 12000
6909 45 1.7717 68 2.6772 12 .4724 0.6 15.1 11.2     6000 10000
6910 50 1.9685 72 2.8346 12 .4724 0.6 15.6 12.2     4000 8000
