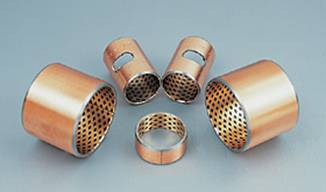

FB08G Bimetal Bearing With Graphite

FB08G Bimetal Bearing With Graphite

Basic characteristics



Solid lubricate bearing is the new type of lubricate bearing that use JF-800 duplex metal as the matrix and mix with special solid lubricator. Because of the high tenacity loading material duplex and use high polymer filled in material and rational spiral angle diamonding distribute lubricate face (reach to 25%), it has the function of lubricate and super low friction

  TECHNICAL DATE



Static

120N/m



Hardness

150

Max.Load







Elongation

40%



Dynamic

40N/m



Temp.

-40~250

Max.Speed

2m/s



Frictioncoefficient

0.08~0.20

Max.PV

2.8N/mm2m/s



Thermalconductivity

60W(m.K)-1

Breaking Load

350N/mm2



Coef.ofthermalexpansion

40x10-6K

Yield Point

240N/mm2
