SF-20 MARGINAL-LUBRICATION BEARING

SF-20 MARGINAL-LUBRICATION BEARING

Metallurgical







  structure

1. POM 0.03-0.50mm, anti abrasion, low friction coefficient even no oil given. The inside of the bearing are full ofindentions, which need to be filled with grease before installing. 2.Bronze powder layer, 0.2-0.35mm, high load capacity and anti-abrasion, good thermal conductivity, which also further strengthen the combination of the POM layer and steel plate. 3. Low carbon steel, which improved, load capacity & thermal conductivity. 4. Copper/Tin plating layer, 0.002mm, anti-corrosion.

  TECHNICAL DATE

Max Load

Static Load

250N/m



friction coefficient

0.05~0.20

Low-speed Rotation

140N/m

max linear velocity

dry friction

2m/s

RotationOscillation

60N/m

liquid lubrication

2m/s

Max PV (Dry Friction)

intermittent operation

3.6N/m㎡﹡m/s

Thermal Conductivity

4W(mK)1

Long-time operation

1.8N/m㎡﹡m/s

Coefficient of thermal expansion

11106K1

Operation Temp

-40~+130







  APPLICATION CHARACTER

The product can be used under high load with low speed, rotation, oscillation, and also can be applied in no liquid lubricants environment that switches frequently with load; the part can work with out oil, and will have a long operating life if oil giver; the POM layer can be machined during installing, which does benefit to the mating.

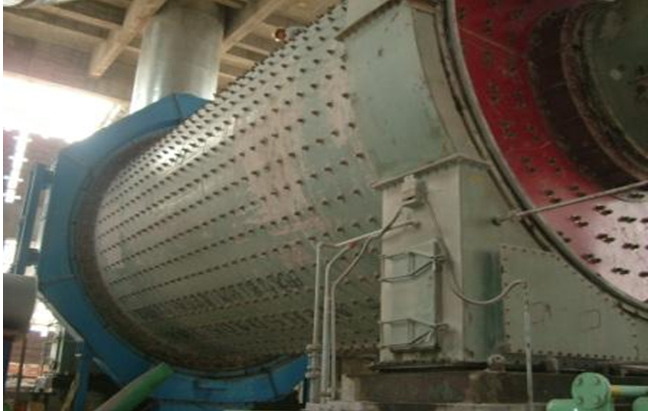

The products now mainly used in metallurgy machine mine industry, irrigation machine, agriculture machine etc.
