FZP ball retainer |
| FZP ball retainer |
Basic characteristics |
| |
|
"The basement of this product is POM. With the high quality roller being arranged orderly in certain angle and density, it is produced by special workmanship. This kind of products is used in punching mold and high-precision machine tools.
"
|
| TECHNICAL DATE |
| Load capacity P |
30N/m©O |
Assembling shrink |
0.01mm~0.02mm |
| MAX sliding velocity |
¡¡6m/s |
|
|
| Friction coef u
|
0.01~0.08 |
Deviation of the steel ball diameter |
<0.002mm |
| |
|
|
|

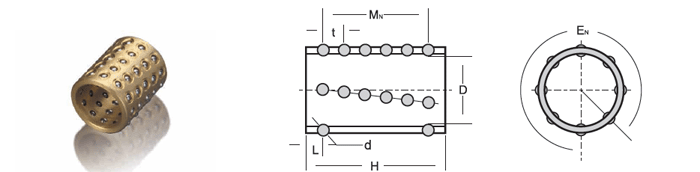

| Model |
Diameter
|
Height
|
Ball diameter
|
Decile
|
Ball high
|
Ball number
|
Pitch
|
Border
|
| FZ-1950 |
19 |
50 |
3 |
12 |
8 |
96 |
5.5 |
5.75 |
| FZ-1960 |
60 |
10 |
120 |
5.25 |
| FZ-2050 |
20 |
50 |
8 |
96 |
5.75 |
| FZ-2060 |
60 |
10 |
120 |
5.25 |
| FZ-2250 |
22 |
50 |
14 |
8 |
112 |
5.75 |
| FZ-2260 |
60 |
10 |
140 |
5.25 |
| FZ-2360 |
23 |
60 |
10 |
140 |
5.25 |
| FZ-2475 |
24 |
75 |
16 |
13 |
208 |
4.5 |
| FZ-2550 |
25 |
50 |
8 |
128 |
5.75 |
| FZ-2560 |
60 |
10 |
160 |
5.25 |
| FZ-2575 |
75 |
13 |
208 |
4.5 |
| FZ-2775 |
27 |
75 |
13 |
208 |
4.5 |
| FZ-2860 |
28 |
60 |
4 |
14 |
8 |
112 |
6.5 |
7.25 |
| FZ-2875 |
75 |
11 |
154 |
5 |
| FZ-3060 |
30 |
60 |
8 |
112 |
7.25 |
| FZ-3075 |
75 |
11 |
154 |
5 |
| FZ-3260 |
32 |
60 |
16 |
8 |
128 |
7.25 |
| FZ-3275 |
75 |
11 |
176 |
5 |
| FZ-3290 |
90 |
13 |
208 |
6 |
| FZ-3685 |
36 |
85 |
12 |
192 |
6.75 |
| FZ-3690 |
90 |
13 |
208 |
6 |
| FZ-3870 |
38 |
70 |
5 |
8 |
128 |
8 |
7 |
| FZ-3890 |
90 |
11 |
176 |
5 |
| FZ-4090 |
40 |
90 |
11 |
176 |
5 |
| FZ-4590 |
45 |
90 |
18 |
11 |
198 |
5 |
| FZ-45110 |
110 |
13 |
234 |
7 |
| FZ-5090 |
50 |
90 |
20 |
11 |
220 |
5 |
| FZ-50110 |
110 |
13 |
260 |
7 |
| FZ-6090 |
60 |
90 |
22 |
11 |
242 |
5 |
| FZ-60110 |
110 |
13 |
286 |
7 |
| FZ-80130 |
80 |
130 |
28 |
15 |
420 |
9 |
|
|
| |
 |
