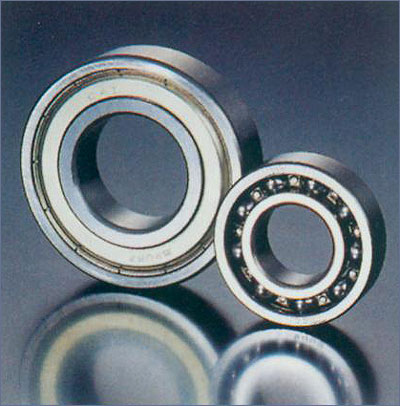

インチ1600系 |
| インチ1600系 |
| |
|
|
| 軸受け項番 |
孔径 |
外径 |
厚み |
R角 |
載せ値（KN） |
ボール係数 |
| Bearing No. |
Bore |
O.D |
Width |
Chamfer |
Load Rating |
Ball Complement |
| |
dmmin. |
Dmmin. |
Bmmin. |
rminmm |
DynamicCr |
StaticCor |
NO. |
Sizemm |
| 1601 |
4.762 .1875 |
17.463 .6875 |
★6.350 .2500 |
0.30 .012 |
1.511 |
0.724 |
6 |
3.969 |
| 1602 |
6.350 .2500 |
17.163 .6875 |
★6.350 .2500 |
0.30 .012 |
1.511 |
0.724 |
6 |
3.969 |
| 1603 |
7.938 .3125 |
22.225 .8750 |
△7.142 .2812 |
0.30 .012 |
2.547 |
1.342 |
7 |
3.969 |
| 1604 |
9.525 .3750 |
22.225 .8750 |
△7.142 .2812 |
0.38 .015 |
2.547 |
1.342 |
7 |
3.969 |
| 1605 |
7.938 .3125 |
23.017 .9062 |
7.938 .3125 |
0.30 .012 |
2.547 |
1.342 |
7 |
3.969 |
| 1606 |
9.525 .3750 |
23.017 .9062 |
7.938 .3125 |
0.38 .015 |
2.547 |
1.342 |
7 |
3.969 |
| 1607 |
11.113 .4375 |
23.017 .9062 |
7.938 .3125 |
0.38 .015 |
3.556 |
1.938 |
7 |
3.969 |
| 1614 |
9.525 .3750 |
28.575 1.1250 |
9.525 .3750 |
0.64 .025 |
3.921 |
2.245 |
8 |
4.762 |
| 1615 |
11.113 .4375 |
28.575 1.1250 |
9.525 .3750 |
0.64 .025 |
3.921 |
2.245 |
8 |
4.762 |
| 1616 |
12.700 .5000 |
28.575 1.1250 |
9.525 .3750 |
0.64 .025 |
3.921 |
2.245 |
8 |
4.762 |
| 1620 |
11.113 .4375 |
34.925 1.3750 |
11.113 .4375 |
0.64 .025 |
5.88 |
3.49 |
10 |
4.762 |
| 1621 |
12.700 .5000 |
34.925 1.3750 |
11.113 .4375 |
0.64 .025 |
5.88 |
3.49 |
10 |
4.762 |
| 1622 |
14.288 .5625 |
34.925 1.3750 |
11.113 .4375 |
0.64 .025 |
5.88 |
3.49 |
10 |
4.762 |
| 1623 |
15.875 .6250 |
34.925 1.3750 |
11.113 .4375 |
0.64 .025 |
5.88 |
3.49 |
10 |
4.762 |
| 1628 |
15.875 .6250 |
41.275 1.6250 |
12.700 .5000 |
0.64 .025 |
7.232 |
4.45 |
9 |
6.35 |
| 1630 |
19.050 .7500 |
41.275 1.6250 |
12.700 .5000 |
0.64 .025 |
7.232 |
4.45 |
9 |
6.35 |
| 1633 |
15.875 .6250 |
44.450 1.7500 |
12.700 .5000 |
0.64 .025 |
7.232 |
4.45 |
9 |
6.35 |
| 1635 |
19.050 .7500 |
44.450 1.7500 |
12.700 .5000 |
0.64 .025 |
7.232 |
4.45 |
9 |
6.35 |
★Width RS& 2RS=5/16 inch 7.938
△Width RS& 2RS=11/32 inch 8.731
|
|
| |
 |
